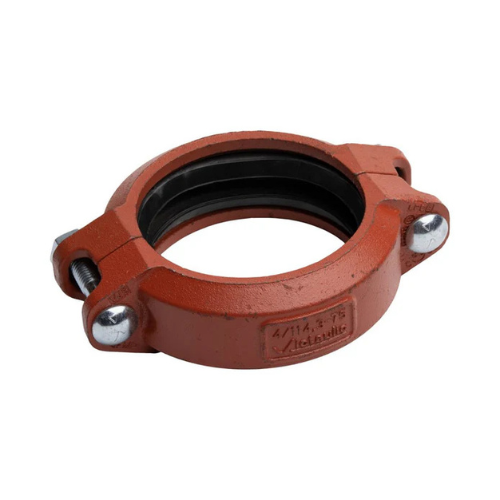

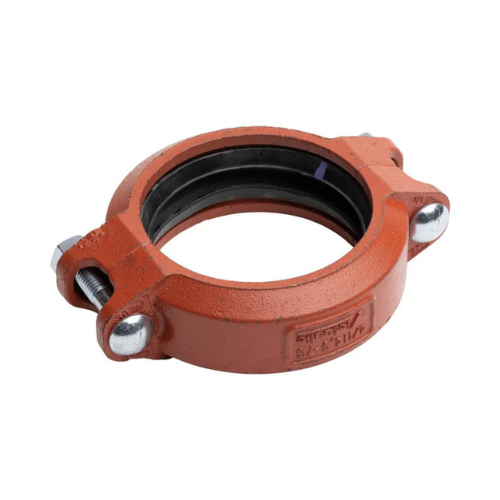

🛢️Downhole Drilling Victaulic Clamp offers a fast, secure, and leak-free way to join grooved pipes.
Made from durable ductile iron, it’s ideal for HDD and industrial systems.
Easy to install and maintain, this coupling provides flexibility, strength, and long-lasting performance for any piping application.
📊 Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Grooved Pipe Coupling / Victaulic Clamp |
| Material | Ductile Iron (ASTM A536) / Stainless Steel (Optional) |
| Surface Finish | Painted, Hot-Dip Galvanized, or Epoxy Coated |
| Sizes Available | 1" (DN25) to 12" (DN300) — custom sizes on request |
| Pressure Rating | Up to 750 PSI (depending on size and model) |
| Temperature Range | -34°C to +110°C (with standard EPDM gasket) |
| Gasket Material Option | EPDM, Nitrile (NBR), Silicone, Fluor elastomer (Viton) |
| End Connection Type | Grooved End (for quick mechanical joining) |
| Maximum Angular Deflection | 1° to 3° (varies by size) |
| Maximum Working Pressure | 300–750 PSI |
| Sealing Method | Elastomeric gasket (C-shaped or pressure-responsive) |
| Certifications | UL Listed, FM Approved, ISO 9001:2015 |
| Applications | Fire Protection Systems, HVAC, Water Supply, Industrial & Marine Piping |
| Installation Method | Mechanical joint – clamp and tighten (no welding required) |
