Description

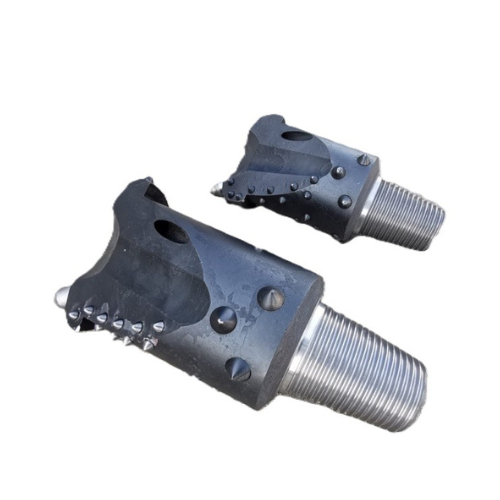

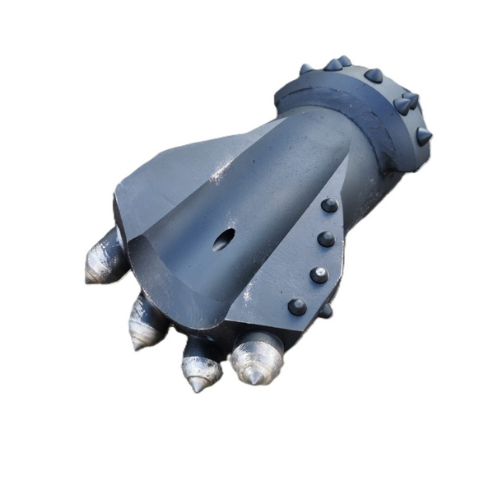

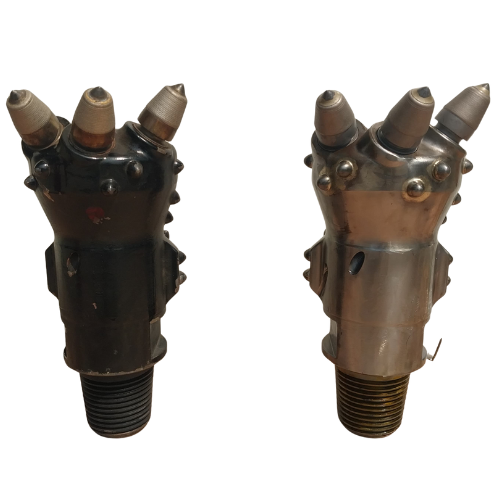

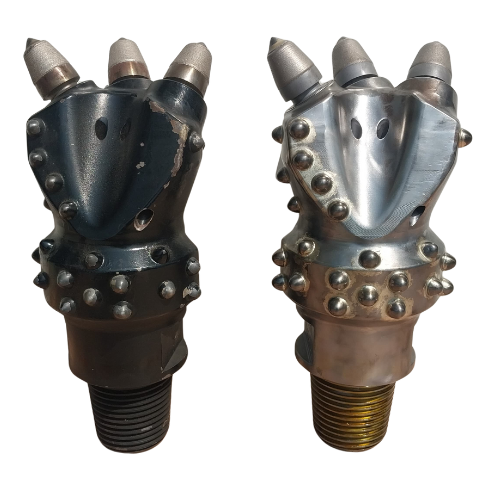

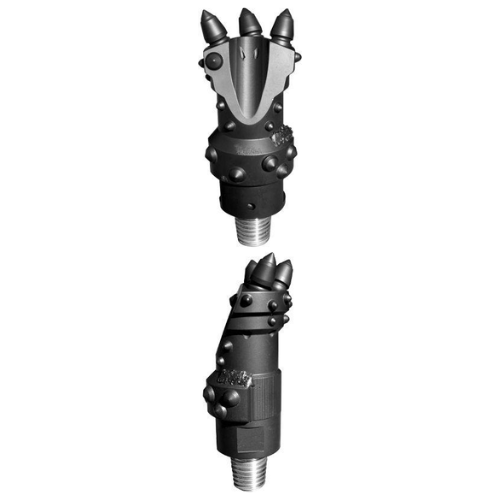

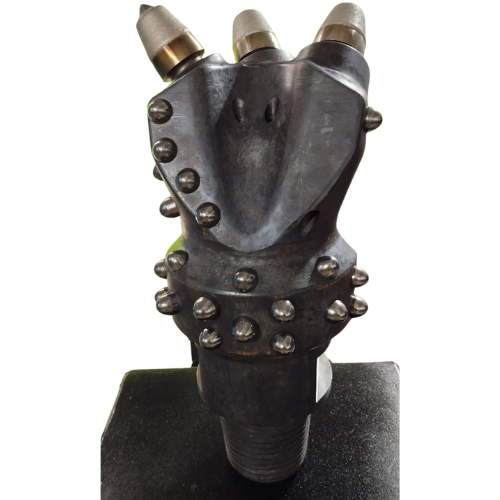

Our Tri-Hawk Bit is built with a combination of hardened steel and premium carbide to maximize cutting efficiency and tool life.
- Balanced and Aggressive Cutting Action
- Independent Cutting Paths: The three main carbide cutters are strategically placed to cut independent paths around the tool’s centreline.
- Cutter #1: Initiates the primary cut.
- Cutter #2: Makes a slightly deeper relief cut just inside the initial cut.
- Cutter #3: Breaks the resulting chip for easy removal.
- Advanced Steering and Wear Protection
- Carbide Studded Heel: Elevates the carbide cutters into the top of the tunnel, which both accelerates steering reaction and minimizes wear on the primary steering surface.
- Strategic Carbide Placement: All body carbide is soldered in place and precisely located on all steering surfaces and edges that lead into the cut, ensuring protection where it is needed most.
- Reinforced Bit Face: The bit face offers a significant area to support the 3 main cutters and is carbide lined for superior performance.
- Ease of Tripping: A bevelled, carbide protected back-end makes tripping-out (pulling the drill string back) easier.
Field Serviceable & Versatile Integration
We understand that downtime is costly. Our Tri-Hawk Bits are designed for maximum efficiency both downhole and on the rig floor.
- Quick Field Serviceability: Main carbide cutter punch-out holes are easily accessible, allowing for quick and easy replacement of cutter teeth in the field.
- Interchangeable Teeth: Different tooth styles are available to accommodate a wide variety of job conditions, ensuring you always have the right configuration.

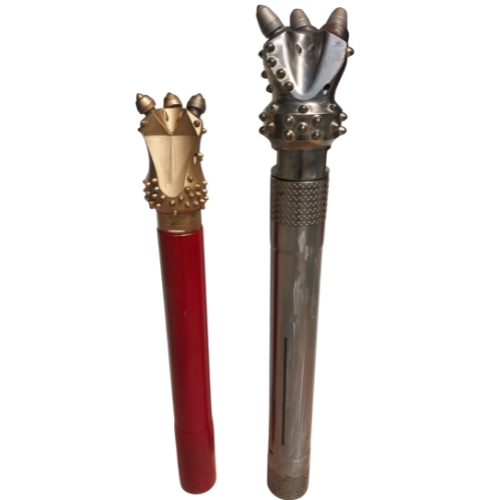

- Easy Integration: Easily threads on to standard side-load or high-flow housings.
- Direct Pullback Capable: Fully capable of doing direct pullbacks using the Eagle Eye pullback device.
