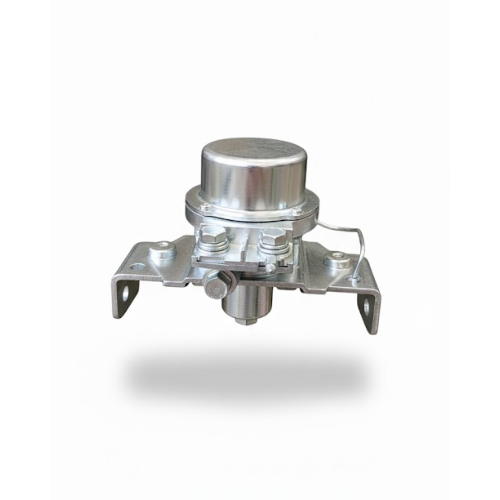

⚙️ Downhole Drilling Heavy-Duty Solenoid Cut-Outs for HDD Rig Engines
The Solenoid Cut-Out (also known as the Engine Stop Solenoid or Fuel Shutoff Solenoid) is a non-negotiable safety and functional component of your HDD rig’s diesel engine. It controls the fuel rack or fuel pump, ensuring the engine can be quickly and reliably shut down from the operator’s panel or automatically in case of a fault.
Failure of this solenoid can lead to an inability to start the engine, unexpected stalling, or—critically—the inability to shut the engine down, creating a dangerous condition.
HDD Engine Stop Solenoid, Fuel Shutoff Solenoid for HDD Rig, Diesel Solenoid Cut Out
12V Stop Solenoid, 24V Shutdown Solenoid, OEM Replacement Fuel Solenoid, Heavy Duty Solenoid Plunger.
Technical Specifications: Engine Stop Solenoid
These specifications are vital for compatibility with the rig’s engine make and model (e.g., Cummins, Kubota, Deutz) and electrical system.
| Specification Category | Parameter | Typical HDD Requirement/Value | Critical Importance |
|---|---|---|---|
| Electrical Power | Nominal Voltage | 12V DC or 24V DC | Must perfectly match the engine's electrical system voltage. |
| Winding Type | Single Coil or Dual Coil (Pull/Hold) | Dual coil (using a high-current Pull coil and low-current Hold coil) is common for powerful, reliable actuation. | |
| Current Rating (Pull) | 20A to 50A (High transient current) | Required to generate enough magnetic force to move the fuel rack/plunger. | |
| Current Rating (Hold) | <1A (Low continuous current) | Minimizes heat and power consumption while holding the plunger in the run position. | |
| Mechanical Performance | Stroke/Travel Distance | 20 mm to 50 mm | Must be sufficient to fully actuate the fuel pump's shutoff lever. |
| Pull Force | 4 Kg to 10 Kg (40 N to 100 N) | Force must overcome the return spring and fuel system resistance. | |
| Mounting/Connection | Standardized mounting flanges (e.g., 3-bolt, 2-bolt) and plunger linkages. | Ensures drop-in physical compatibility with the engine block/fuel pump. | |
| Environmental | IP Rating | IP65 or higher | Protects the coils and internal mechanism from engine bay heat, dust, and moisture. |
| Material | Alloy Steel / Aluminium Casing | Required for heat dissipation, vibration dampening, and corrosion resistance. |
