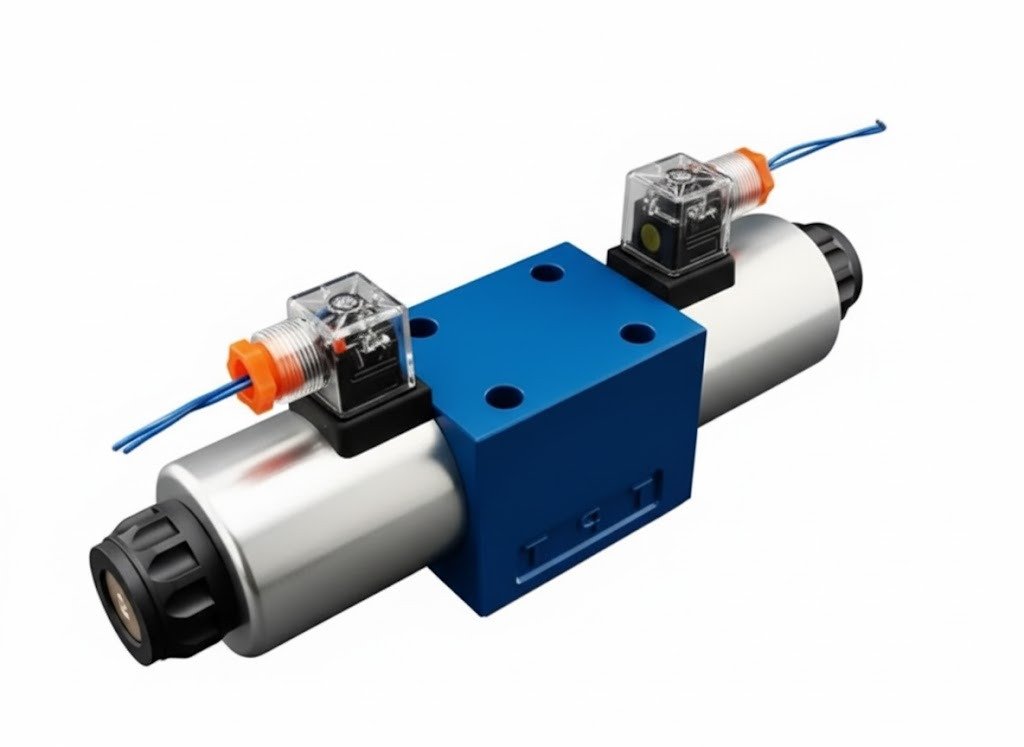

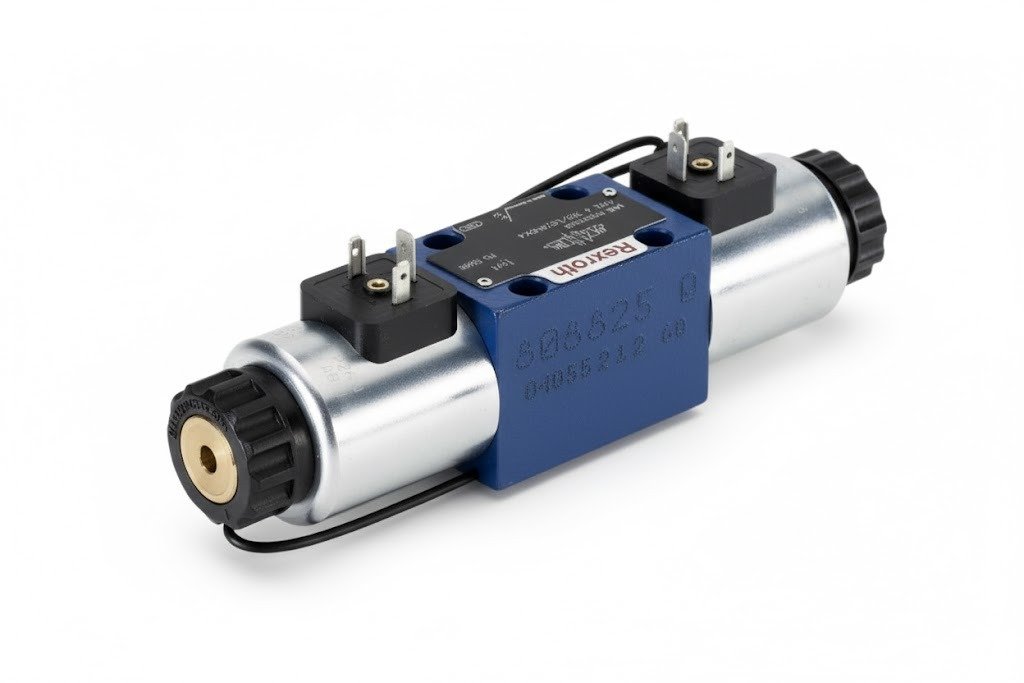

⚙️ Downhole Drilling High-Performance Hydraulic Solenoid Valves for HDD Rigs
Hydraulic solenoid valves are the critical components that regulate and direct the flow of high-pressure hydraulic fluid within your Horizontal Directional Drilling (HDD) rig. They translate electrical commands from the operator’s controls into precise hydraulic action, controlling essential movements like thrust, rotation, vice jaw operation, and mud pump activation.
Technical Specifications: Core Performance Data
This table provides the essential hydraulic, electrical, and mechanical specifications required by rig maintenance and design teams.
| Specification Category | Parameter | Typical HDD Requirement/Value | Critical Importance |
|---|---|---|---|
| Hydraulic Performance | Maximum Operating Pressure | 350 bar (5075 psi) or higher | Must withstand the high pressure common in modern HDD hydraulic circuits. |
| Max Flow Rate | 80 to 200 L / min (Depends on rig size) | Determines the speed and power of the controlled function (e.g., rapid thrust/pullback). | |
| Valve Function/Position | 4/3 (4-way, 3-position), 4/2 (4-way, 2-position) | Defines the control type (e.g., controlling a double-acting cylinder). | |
| Spool Type | Open Centre, Closed Centre, Tandem Centre | Dictates the hydraulic circuit behaviour in the neutral position. | |
| Electrical Interface | Solenoid Voltage | 12V DC or 24V DC | Must integrate with the rig's electrical system; ensures coil compatibility. |
| Control Type | On/Off (Discrete) or Proportional (Variable) | Proportional valves are required for fine, smooth control (e.g., steering). | |
| Mechanical/Mounting | Mounting Pattern | CETOP 3 (NG6), CETOP 5 (NG10) | Standardized patterns ensure drop-in compatibility with manifolds. |
| Enclosure/IP Rating | IP65/IP67 (Valve body and coil) | Protects the valve and electrical connection from mud, water, and drilling fluids. | |
| Material | High-Strength Cast Iron/Steel Body | Required for durability and pressure resistance. |
Given the severe demands of the HDD environment—high pressure, high flow, contamination risk, and constant vibration—our solenoid valves are engineered for exceptional reliability and durability.
HDD Hydraulic Solenoid Valve, Directional Control Valve for HDD Rig, High-Pressure Hydraulic Valve
Proportional Solenoid Valve, 4/3 Way Directional Valve, CETOP Valve for Drilling Rig, Pilot Operated Valve for HDD.
