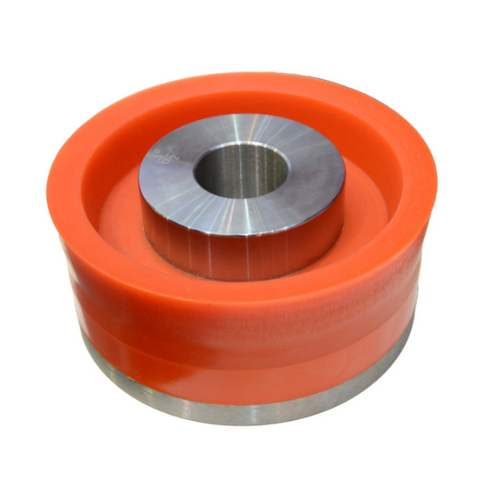

🛡️Downhole Drilling High-Performance Mud Pump Pistons Assembly: Superior Sealing and Maximum Durability
Our mud pump pistons are engineered for uncompromising performance in demanding drilling environments, ensuring maximum hydraulic efficiency and minimizing pump maintenance downtime.
Technical Feature Breakdown: Material vs. Performance
Translate the material specs directly into operational benefits, emphasizing the different cup options.
| Feature | Technical Detail | Operational Benefit for the Buyer |
|---|---|---|
| Piston Hub Material | Forged Alloy Steel (#45 steel, 40Cr) | Structural Integrity: High tensile strength to endure peak pressure pulses and prevent failure. |
| High-Temp NBR Cup | Service Life ≥ 200 hours, Heat Resistance ≤ 110°C | Standard Use: Excellent oil resistance and reliable service in most conventional drilling environments. |
| High-Temp Urethane Cup | Service Life ≥ 300 hours, Heat Resistance ≤ 110°C | Abrasion Resistance: Offers superior cutting resistance and longer life in highly abrasive muds, suitable for many geothermal applications. |
| HNBR Cup | Service Life ≥ 300 hours, Heat Resistance ≤ 150°C | Extreme Conditions: Optimal for high-temperature and harsh chemical environments, maximizing performance in deep drilling or difficult wells. |
| Piston Design | Bonded and Replaceable Options | Maintenance Flexibility: Choose the best design for your maintenance procedures and cost-efficiency goals. |
Piston Cup Material Selection Guide
| Cup Material | Max Heat Resistance | Minimum Service Life | Best Suited For |
|---|---|---|---|
| Standard Urethane | ≤ 80°C | ≥ 200 | Standard drilling, high abrasion (lower temp) |
| NBR | ≤ 110°C | ≥ 200 | Conventional drilling, good oil/heat balance |
| High-Temp Urethane | ≤ 110°C | ≥ 300 | High abrasion resistance in moderate heat |
| HNBR | ≤ 150°C | ≥ 300 | Extreme Heat/Chemicals (Deep/Geothermal) |
