Mud Swivel Seal

⚙️Downhole Drilling Multi-Barrier Sealing System: Maximize Swivel Longevity in HDD

By utilizing this advanced multi-barrier system—combining the external abrasion resistance of PTFE with the contained pressure sealing of reinforced cuffs—we dramatically extend the life of your swivel, resulting in less maintenance downtime and a lower total cost of ownership for your HDD rig.

Uncompromising Tightness: Our Three-Tier Swivel Sealing System

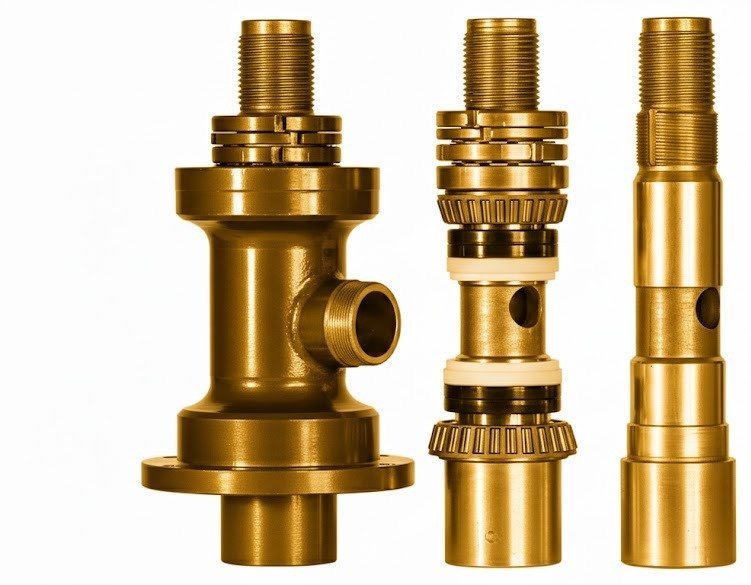

The swivel is the critical link that bears all rotational and pullback forces while exposed to abrasive drilling fluids. Standard seals fail quickly under these conditions, leading to costly downtime. Our swivels employ a proprietary three-barrier sealing system engineered to ensure uncompromising tightness, extend operational life, and protect internal bearings from contamination.

Description
Reviews (0)

Description

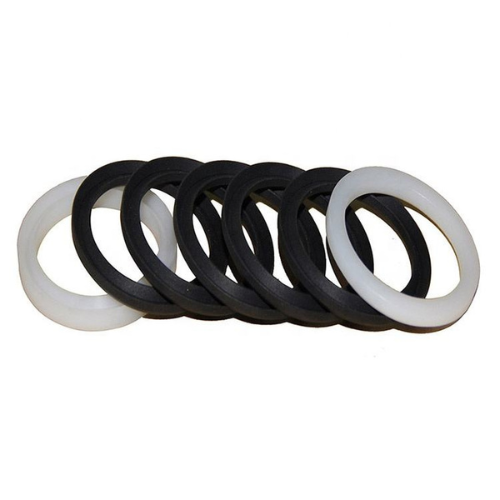

Barrier 1: The Primary Defence Against Abrasives

Component: PTFE (Polytetrafluoroethylene) Bushings.
Technical Detail: These are the first and most important barrier. They are designed with a deliberate interference fit on both the inner and outer diameters.
Function: Due to their tight fit and wide sliding plane, these robust PTFE bushings completely exclude abrasive particles (like sand and fine rock cuttings) present in the drilling fluid. By preventing direct contact between the abrasive slurry and the main seals, we eliminate the primary cause of seal failure and shaft damage.

Barrier 2: High-Pressure Containment in Ideal Conditions

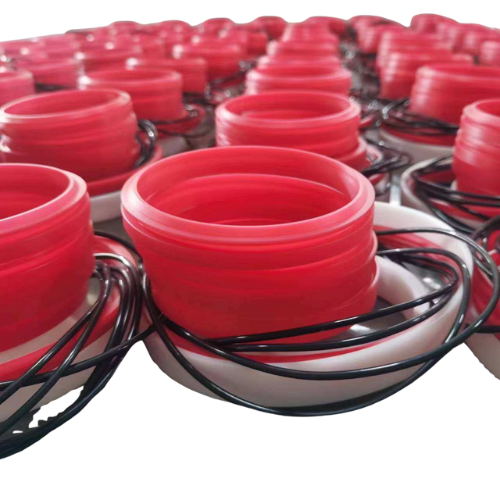

Component: Standard Reinforced Cuffs (Pressure Seals).
Technical Detail: These are high-quality, reinforced seals capable of holding pressure. The internal cavity between the PTFE bushings and these cuffs is filled with oil during assembly.
Function: These cuffs operate in ideal conditions: They are fully immersed in an oily medium and are never allowed to interact with abrasive particles.

Barrier 3: Internal Bearing Protection and Oil Retention

Component: Internal Cuffs (Swivel Body Seals).
Technical Detail: These cuffs are installed inside the flanges of the swivel body.
Function: This third barrier ensures the overall tightness of the swivel body. It contains the internal cavity where the main bearings are located, ensuring this critical area remains permanently filled with clean oil, providing maximum bearing protection against contaminants and heat.
