Description
| Desander Parameters | ||||
|---|---|---|---|---|
| Model | Downhole 120 | Downhole 240 | Downhole 360 | Downhole 120 |
| Capacity (m³/h) | 120 | 240 | 360 | 120 |
| Power (kW) | 2×1.5 | 2×1.5 | 2×1.72 | 2×0.75 |
| Cones | DN250×1 (10” ×1) | DN250×2 (10” ×2) | DN250×3 (10” ×3) | DN250×1 (10” ×1) |
| Screen Size (mm) | 1165×585×40 (120 mesh) ×3 | 1165×585×40 (120 mesh) ×3 | 1165×585×40 (120 mesh) ×4 | 750×900×27 (100 mesh) ×2 |
| Screen Area (m²) | 2.0 | 2.0 | 2.7 | 1.35 |
⚙️ Product Overview

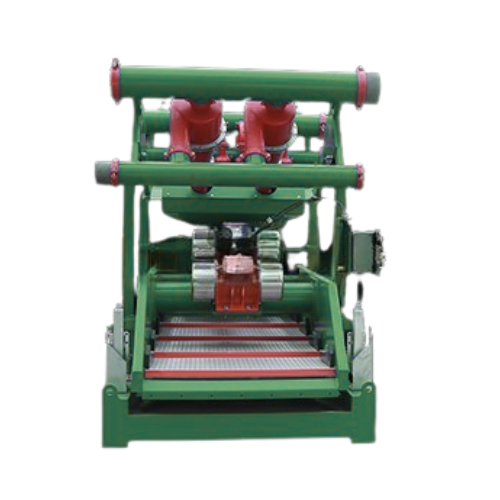

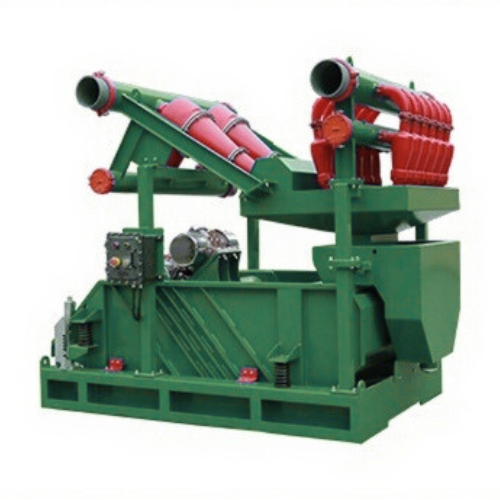

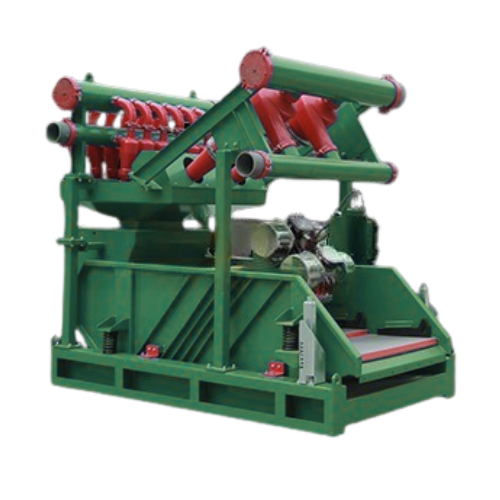

The Downhole Drilling Desander operates on the principle of centrifugal separation.
Unprocessed drilling mud is fed into the desander cyclone cone under pressure through a horizontal inlet.
The heavier solids are forced to the cone wall and discharged through the underflow, while the cleaned fluid flows out from the overflow outlet to the next treatment stage.
Optionally, a bottom shaker can be integrated to collect separated solids from the cone nozzles for easy disposal.
🌟 Key Features & Benefits
✅ Premium Polyurethane (PU) Cones – Made from 100% wear-resistant PU for extended service life.
✅ Easy Maintenance Clamp Design – Quick cone removal for simple maintenance and cleaning.
✅ Flexible Configuration Options – Choose 1, 2, or 3 cones depending on required capacity.
✅ Compatible with Various Shakers – Different downstream shale shaker sizes available.
✅ User-Friendly Installation – Fast connections and compact structure for easy assembly.
✅ High-Quality Coating – Sandblasted and coated with heavy-duty anti-corrosion paint.
✅ Long-Lasting Durability – Built for harsh drilling environments and heavy-duty use.
