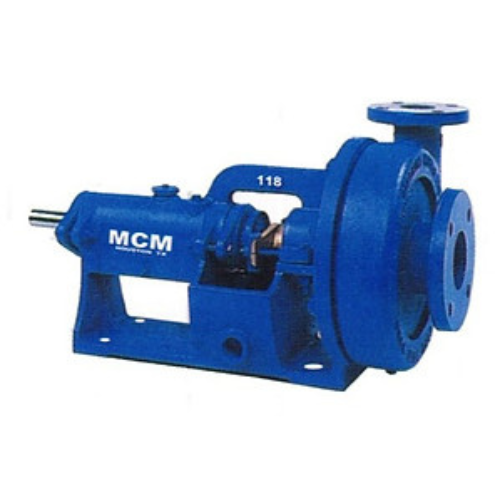

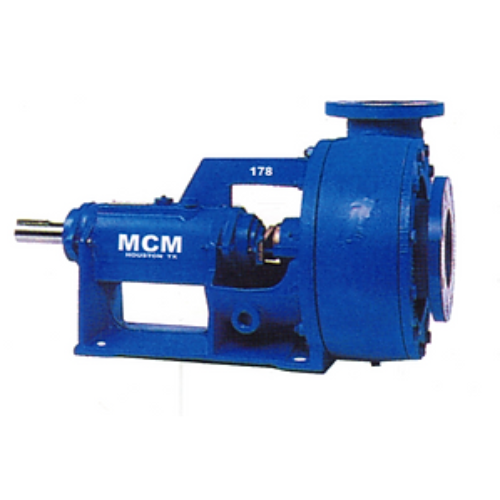

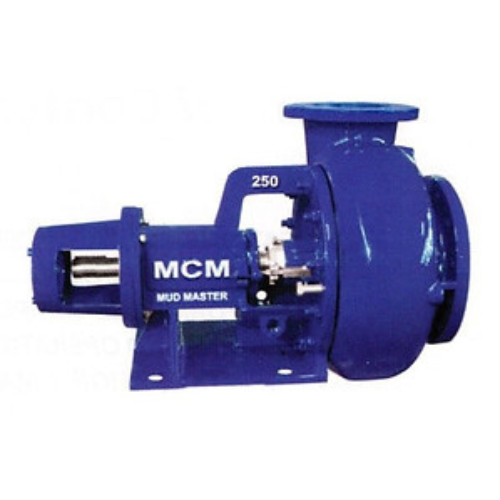

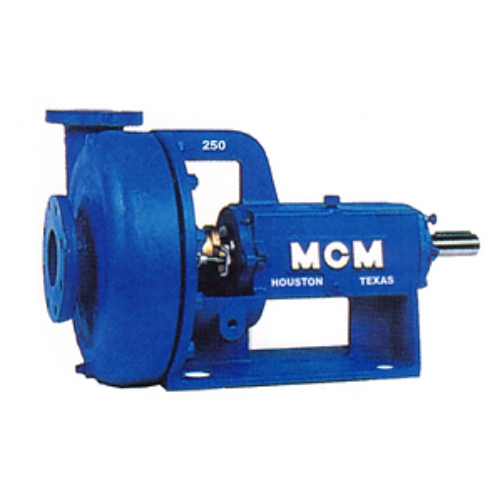

MCM

Description

Durability and Low Maintenance

The MCM pump is designed with a focus on longevity, simplified maintenance, and reduced total cost of ownership (TCO).

• Rugged Construction: The casing and frame are built from robust, thick-walled cast or ductile iron, offering superior resistance to pressure spikes, erosion, and corrosion allowance, which are critical when pumping aggressive slurries.
• Back Pull-Out Design: This key feature allows the entire rotating assembly (impeller, shaft, seal, and bearings) to be easily withdrawn from the casing without requiring the disconnection of the suction and discharge piping or the disturbance of the motor. This minimizes maintenance downtime significantly.
• Replaceable Wear Parts: The pump is protected by renewable components that bear the brunt of the wear, allowing the main casing to last longer:
  • Impeller: Designed with wide vanes in an open configuration to efficiently pass large solids and minimize clogging. Available in materials like high-chrome iron for extreme abrasion resistance.
  • Replaceable Liners: Critical liners (like the suction plate liner and the volute liner) are designed to be easily replaced when worn, protecting the integrity of the expensive main pump housing.

⚙️ Hydraulic and Mechanical Advantages

• Solids Handling: The hydraulic design is optimized for fluids containing high concentrations of solids. The large internal clearance and open impeller prevent material build-up and maintain flow consistency.
• Bearing Assembly: The heavy-duty bearing assembly is often housed in a robust frame and designed to handle the axial thrust loads created by pumping high-density slurries, ensuring prolonged bearing life and stable shaft rotation.
• Sealing Versatility: The stuffing box is deep and versatile, capable of accommodating multiple rings of gland packing (often the preferred choice for mud and slurry to allow controlled cooling leakage) or being retrofitted with modern cartridge mechanical seals for cleaner applications.

🔑 Common Applications

The MCM pump is a staple in several major industries where solids control is paramount:

• Oil & Gas Drilling: Used extensively for mixing and circulating drilling mud (slurry), feeding hydro cyclones, and charging centrifuges in solids control systems.
• Mining & Quarrying: Transporting abrasive mineral slurries, process water with fines, and high-density waste tailings.
• Construction & Aggregate: Pumping sand, gravel, and process water for washing and screening operations.
