🧭 Downhole Drilling Precision Limit Switches for HDD Rigs
Limit switches are indispensable components on Horizontal Directional Drilling (HDD) rigs. They provide crucial position feedback and safety interlocks, determining the precise travel limits of moving parts like the carriage, vice jaws, anchoring systems, and rod loader. Reliability in harsh, wet, and dusty conditions is the number one priority.
HDD Rig Limit Switch, Directional Drill Position Sensor, Heavy Duty Limit Switch IP67

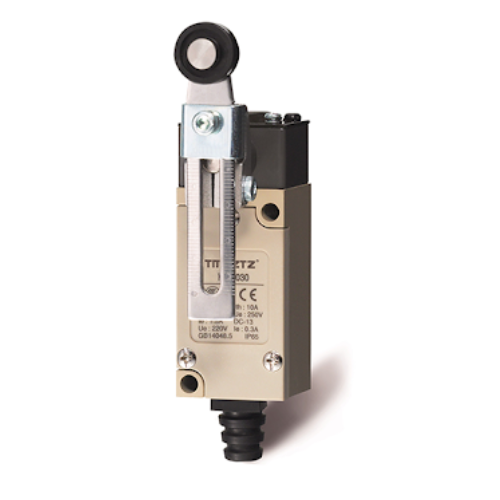

Roller Lever Limit Switch for HDD, Carriage Travel Limit Switch, Inductive Limit Switch for Rig, Safety Interlock Switch Ditch Witch/Vermeer.
Technical Specifications: Core Reliability Data
This table details the critical specifications required for heavy-duty mobile equipment applications.
| Specification Category | Parameter | Typical HDD Requirement/Value | Critical Importance |
|---|---|---|---|
| Mechanical/Sealing | Ingress Protection (IP Rating) | IP67 or IP68 | Essential: Must be dust-tight and protected against temporary (IP67) or continuous (IP68) immersion in mud and water. |
| Actuator Type | Roller Lever, Plunger, or Flexible Rod | Dictates the mechanism's durability and ability to handle impact from the moving carriage or rod loader. | |
| Housing Material | Die-cast Aluminium or Reinforced Thermoplastic | Provides high mechanical strength and corrosion resistance. | |
| Operating Temperature | -40°C to +85°C | Ensures reliable function in extreme hot and cold drilling climates. | |
| Mechanical Life | 1,000,000 operations minimum | Guarantees long service life under high-cycle usage (e.g., carriage movement). | |
| Electrical | Nominal Voltage (DC) | 12V DC / 24V DC | Must integrate seamlessly with the rig's control voltage. |
| Current Rating (Thermal Ith) | 5A to 10A | Must safely handle the current required to switch contactors or PLC inputs. | |
| Contact Configuration | 1NO + 1NC (Normally Open / Normally Closed) | Standard configuration for reliable safety and position feedback loops. | |
| Contact Type | Snap Action with Positive Opening | Ensures rapid, reliable contact separation for safety functions. |
