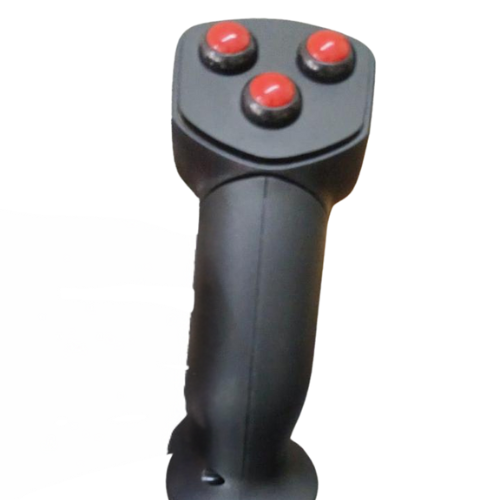

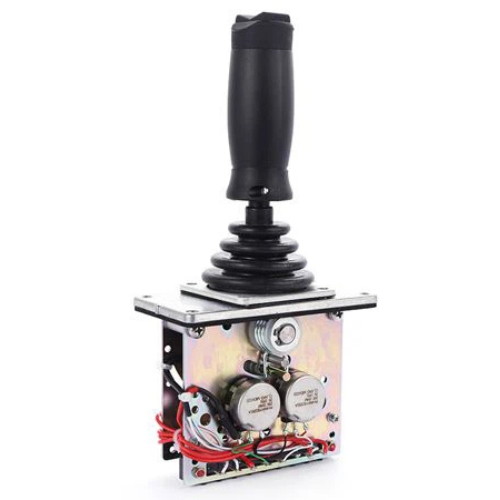

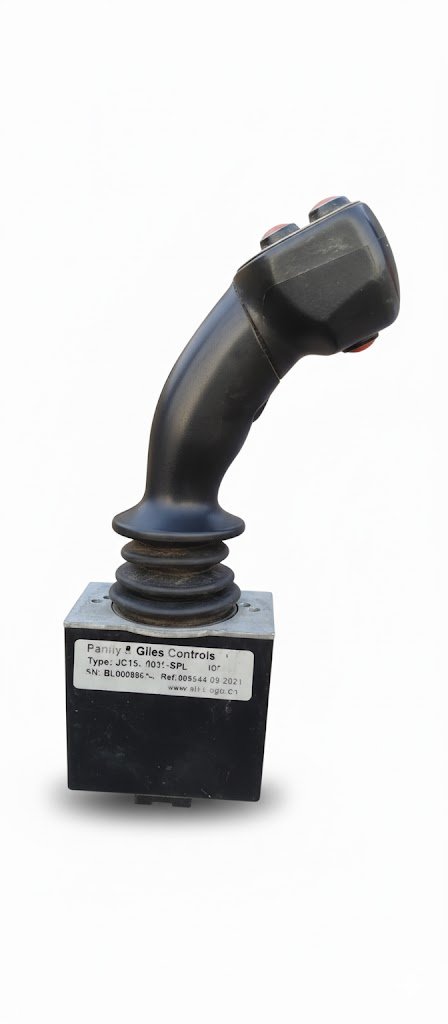

🕹️ Downhole Drilling Heavy-Duty Joystick Controllers for HDD Rigs
Joystick controllers are the primary human-machine interface (HMI) for operators of Horizontal Directional Drilling (HDD) rigs. They provide proportional and precise control over critical functions like thrust, pullback, rotation, and vice clamping. Given the continuous use and extreme environment, durability and reliable signal output are non-negotiable.
HDD Joystick Controller, Heavy Duty Directional Drill Joystick, Hall Effect Controller for Rig
Proportional Joystick for HDD, 2-Axis Joystick, OEM Replacement Joystick Vermeer/Ditch Witch, CAN bus Joystick.
Technical Specifications: Core Data Sheet
This table utilizes industry-standard data to establish credibility with maintenance and OEM buyers.
| Specification Category | Parameter | Typical HDD Requirement/Value | Critical Importance |
|---|---|---|---|
| Sensing Technology | Type | Hall Effect (Recommended) or Potentiometric | Crucial: Hall Effect offers non-contact sensing for extreme life (≥ 5 million cycles) and resistance to wear. |
| Electrical Output | Signal Type | Analog Voltage (0.5-4.5V or 0-5V) or CAN bus (J1939) | Ensures seamless integration with the rig’s PLC or VCM (Vehicle Control Module). |
| Supply Voltage | 5V DC or 12V / 24V DC | Must match the power supplied by the control system. | |
| Redundancy | Dual Output (Redundant Sensors) | Safety Feature: Provides a backup signal for critical functions, complying with safety standards. | |
| Mechanical/Interface | Axes | 2-Axis (X/Y) for Thrust/Rotation; 3-Axis for advanced functions. | Defines control complexity (e.g., simultaneous forward and rotate). |
| Operating Angle | ± 20° to ± 36° from center. | Provides the operator with smooth, proportional control range. | |
| IP Rating | IP65, IP67 (Above panel) | Essential: Protects against dust, moisture, and high-pressure wash-down. | |
| Handle Features | Integrated Pushbuttons, Rocker Switches, or Thumbwheels. | Allows multi-function control (e.g., Horn, Rod Clamp) from one handle. | |
| Environmental | Operating Temperature | -40°C to +85°C | Required for reliable performance in all global climates. |
| EMC/ESD Durability | 100V / m EMC; ± 8k V Contact ESD | Necessary to prevent electronic interference and damage on a mobile rig. |
