⚡ Downhole Drilling High-Performance Hydraulic Solenoid Valve Coils for HDD Rigs
Hydraulic solenoid valve coils are the electromechanical heart of your HDD rig’s hydraulic control system. They are responsible for converting electrical signals from the control panel into the magnetic force needed to shift the valve spool, precisely directing high-pressure hydraulic fluid. This precise control is critical for operating key rig functions like thrust, rotation, and pipe clamping.

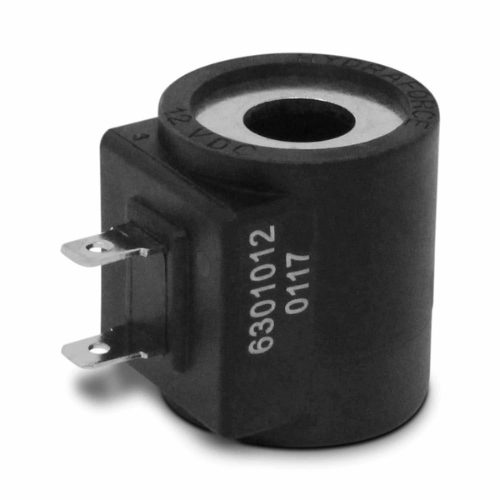

HDD Hydraulic Solenoid Coil, Solenoid Valve Coil for HDD Rig
12V DC Solenoid Coil, 24V DC Solenoid Coil, Hydraulic Valve Coil Replacement, DIN Connector Coil
Technical Specifications: Core Data Sheet
This table provides the essential parameters and requirements specific to demanding HDD applications, ensuring engineers and maintenance personnel find the information they need quickly.
| Specification Category | Parameter | Typical HDD Value | Critical Importance |
|---|---|---|---|
| Electrical Power | Nominal Voltage (DC/AC) | 12V DC or 24V DC | Must match the rig's control system voltage exactly. |
| Power Consumption | 17W to 35W (High-Power) | High wattage ensures sufficient magnetic force to shift the spool against high system pressure. | |
| Duty Rating | Continuous Duty (100% ED) | Essential for applications where the coil remains energized for extended periods without overheating. | |
| Insulation Class | Class F 155°C or Class H 180°C | Indicates maximum temperature resistance, vital for preventing burnout in high-heat hydraulic circuits. | |
| Mechanical/Physical | Sleeve/Core Diameter ID | 13 mm, 16 mm, 19 mm (Must match valve core) | Ensures a perfect, secure fit onto the valve's solenoid tube. |
| Connector Type | DIN 43650 (ISO 4400) or Deutsch DT04-2P | Dictates electrical connection compatibility and environmental sealing. | |
| Ingress Protection (IP Rating) | IP65 (or higher, IP67 recommended) | Crucial for protection against water, mud, drilling fluids, and dust. | |
| Material | Encapsulation | Glass-fibre reinforced thermoplastic/Polyamide | Provides high resistance to impact, vibration, and hydraulic oil corrosion. |
