⚙️ Downhole Drilling Low-Friction Roller Centralizer / Drill Pipe Guide for HDD Rigs

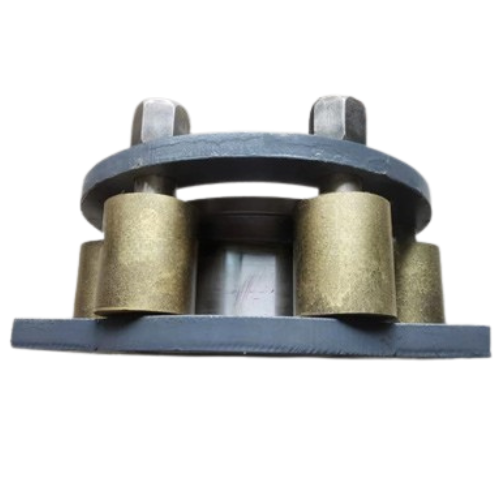

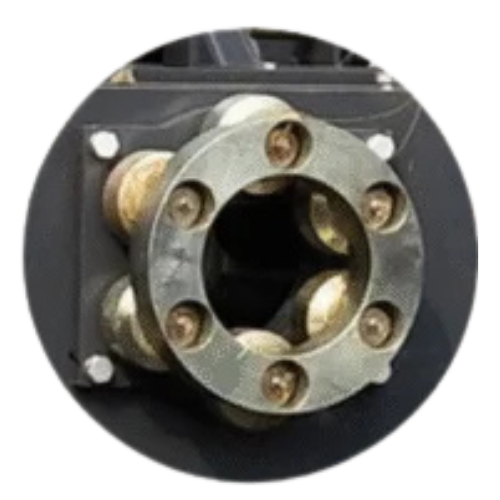

The point where the drill pipe enters the rotating drive chuck is an area of intense friction and wear. Our Rig-Mounted Roller Centralizers utilize specialized rollers (as seen in the image) to actively guide and stabilize the drill rod, dramatically reducing rubbing and scoring. This component is essential, acting as a thread saver and stabilizing the rod during high-speed rotation and aggressive thrust.
Low-Friction Roller Centralizers (Pipe Guides) for HDD Rig Drive Systems
Protect Your Drill Pipe at the Critical Entry Point
Technical Specifications: Roller Centralizer/Guide
| Specification Category | Parameter | Typical HDD Requirement/Value | Critical Importance |
|---|---|---|---|
| Mechanical Fit | Drill Pipe Compatibility (ID) | 2.375", 2.625",3.5" (Must match specific rod OD) | Crucial: Ensures perfect cantering and minimal clearance for stabilization. |
| Mounting Flange (OD & PCD) | Bolt Hole Circle Diameter; Number of Bolt Holes (e.g., 6-Bolt Flange) | Guarantees direct fit compatibility with the rig's existing mounting plate/drive chuck. | |
| Material & Durability | Roller Material | Hardened Brass/Bronze Alloy or Alloy Steel | Offers superior wear resistance and low-friction contact against the steel drill rod. |
| Body/Flange Material | High-Strength Alloy Steel (e.g., AISI 4140) | Provides structural rigidity under high radial load. | |
| Performance | Roller Count | 4-Roller or 6-Roller Configuration | Defines the level of radial support and stabilization provided. (The image shows 6 rollers). |
| Load Rating | High Radial Load Capacity | Must withstand the weight of the drill string and the thrust forces without roller binding or failure. | |
| Maintenance | Lubrication | Sealed Bearings or Accessible Grease Fittings | Ensures rollers spin freely, minimizing friction and maximizing component lifespan. |
